Specifications:

Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)
Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)
Lift of beam:   1.5″” (38.1mm)
Front to back ram adjustment: 1/2″ (13mm)
A minimum reverse bend of 5/8″ (16mm)
Min flange width: 1″ (25mm)
Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)
Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)
Maximum transverse bend in center of machine: 2″ (50.8mm)
Maximum transverse bend at end of machine: 3″ (76.2)
Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)
A shipping weight of 2800lb (1273kg)

Tin Knocker Letter Brake

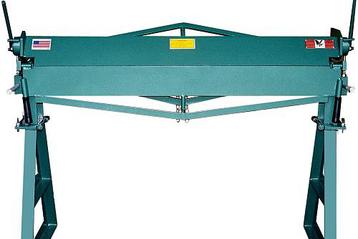

Tin Knocker Universal Brake 616

Specifications:

Weight: 450 lbs
Capacity: 22 Ga Mild Steel
Bend Length: 6′
Included: Bolt-on Apron Angle, Floor Model Legs
Beam Lift: 1 1/4″
Depth of Box or Pan: 2″ 3sides

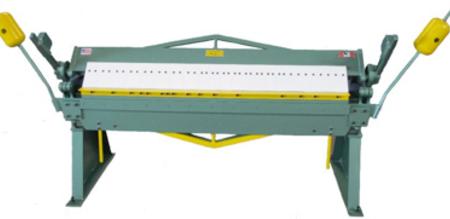

Tin Knocker Straight Brake Model 422

Specifications:

Weight: 190 lbs
Dimensions: 48 x 48 x 46 in
Capacity: 20 Ga Mild Steel
Approx. Footprint: 25”x22”x42”

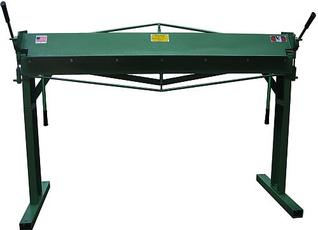

Tin Knocker Straight Brake Model 622

Specifications:

Weight: 350 lbs
Capacity: 22 Ga Mild Steel
Bend Length: 48.25″
Beam Lift: 1″
