Tex-Form

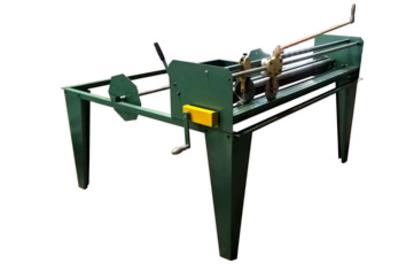

Tin Knocker 1624 Slitter

Tin Knocker 2024 Slitter

Specifications:

Capacity:

Roll width 60” Max
Roll Diameter 40” Max
Liner Thickness ½ to 2”
Liner Density 1 ½ to 3 lbs.

Features:

Payoff reel, adjustable width
Quick cut slitter, length & width
Embedded scale for fast slitting to width

Shipping Information:


270 lbs.
79″ x 28″ x 24″

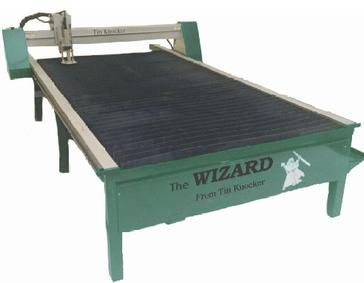

CUTTING TABLE FEATURES

* Heavy duty 5’x10′, all welded steel construction capable of a 2000 lb load (full sheet of 1″plate)
* 2 1/2″ x 60″, 16 ga. slats for economical replacement
* Efficient down draft exhaust design, activated & deactivated automatically as cutting starts & stops
* Hinged clean out doors at both ends makes cleanout easy. Slat removal not necessary.
* Top quality Browning 3/4″ rack & pinion drives
* The finest dual hardened and ground HIWIN#20 linear guide ways
* Heavy duty NEMA 34 motors that automatically square the gantry (a feature only found on the best cutting tables.)
* Direct drive, high torque motors to eliminate position error found on belt driven tables
* Solid 4″x6″ thick wall tube gantry. This light weight, rigid construction means less moving weight and maximum repeatability
* Gantry drive with 3/4″ rack & pinion and dual hardened & ground HIWIN#15 linear guide ways
* Top quality motors and gears delivering position repeatability of approx. .0005″
* Gantry capable of speeds of 1000 IPM
* Precision Drop Head Control
* Torch crash protection.

Specifications:

Weight: 300 lbs
Dimensions: 42 x 18 x 22 in
Capacity: 20 Ga
Throat: 24″
Motor: 1/2 HP, 115v
Minimum Slitting Width: 1.25″
Maximum Slitting Width: 24.25″
Speed (Approx.): 90 FPM

The Wizard 5×10

Tin Knocker Liner Table

Specifications:

Weight: 550 lbs
Dimensions: 46 x 19 x 30 in
Capacity: 16 Ga
Throat: 24″
Motor: 3/4 HP, 115v
Minimum Slitting Width: 1.25″
Maximum Slitting Width: 24.25″
Speed (Approx.): 90 FPM
