Specifications:

Weight: 3450 lbs
Dimensions: 38 x 136.75 x 46 in
Capacity: T-D-P 18-24 ga. for T-D-P Uses approx. 1-7/8″ of material on T-D-P 50 feet per minute T-D-P Clip (min. length 20″) 22 ga. 2-1/8″ 2 1/8″
Forming Sections: 14
Shaft Diameter: 1.25″
Passline: 38.625″
Forming Speed: 50fpm

Specifications:

Weight: 820 lbs
Dimensions: 60 x 30 x 42 in
Capacity: 20-26 Gauge
Motor: 3 HP, 230/3/60 (Available also in 230/1/60 option)
Lube: Centralized
Speed: Approx. 60 FPM

Specifications:

Weight: 1280 lbs
Dimensions: 74″ W x 30″ L x 50″ H
Cleat Width: 1 1/16″
Drive Cleat Width:1 1/18″
Capacity: See features
Motor: 5 HP (1800 RPM) 230 Volt, 3 Phase, 60 Hz “S”
Speed: 100 FPM

Tin Knocker Roll Former, Fourplex, S&Drive

Tin Knocker Roll Former, S & Drive Plus

Tin Knocker Roll Former, 20 Ga Button Lock

Specifications:

Weight: 890 lbs
Dimensions: 69 x 29 x 49 in
Capacity: 22-28 Ga for S Cleat (1 1/16 width) 20-26 Ga for Drive Cleat (1 1/8 width) 20-28 Ga Pittsburgh
Motor: 5 H.P. motor 230/3/60
Speed: 90 FPM

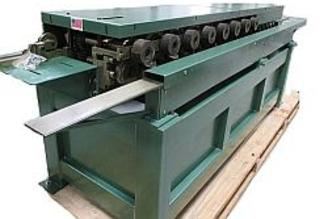

Tin Knocker T-D-P Roll Former

Tex-Form
