Specifications:

Capacity: 16-20 Ga. uses approx. 1-3/8” of material
Motor: 3HP, 230/3/60, 1PH Optional
Depth of pocket size: ½” width of hammer-over edge adjustable up to 3/8
Speed: 40-45 ft per minute

Specifications:

Weight: 305 lbs
Dimensions: 41 x 25 x 30 in
Capacity: 24 Gauge Mild Steel
Motor: 1/2 HP, 1700 RPM, 115 Volt, Single Phase, 60 Hz – Standard (230/1/50 available)
Depth of Pocket: Approx. 5/16″ (7.9mm) with hammer edge of 3/8″ (9.53mm)
Speed: Approx. 35 FPM
Flange Height: 3/16″ (4.76mm)
Dimensions Roll Former: 30″ x 14″ x 20″ (762mm x 356mm x 508mm)
Dimensions Stand: 35″ x 14″ x 24″ add 6″ around for shipping

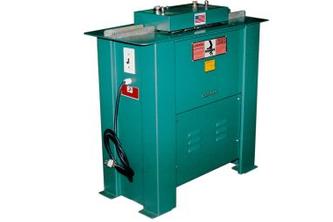

Tin Knocker 16GA Pittsburgh Roll Former

Tin Knocker NO. 24 Collar Maker

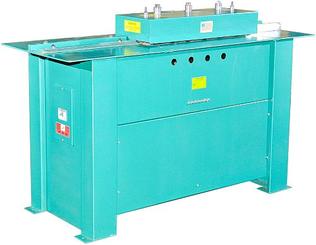

Tin Knocker Roll Former, 20 Ga Pittsburgh

Specifications:

Weight: 360 lbs. (136kg)
Dimensions: 40″L x 24″W x 44″H (1016mm x 610mm x 1118mm)
Capacity: 20-26 Gauge Mild Steel
Motor: 1 HP, 115/230 Volt, 1800 RPM
Depth of Pocket: 5/16″ (7.9mm)
Speed: Approx. 25 FPM

Tin Knocker Roll Former, 24 Ga Pittsburgh with Stand

​Tex-Form
